File:PRIMA Figure Diagram.png
Original file (2,067 × 1,876 pixels, file size: 5.05 MB, MIME type: image/png)

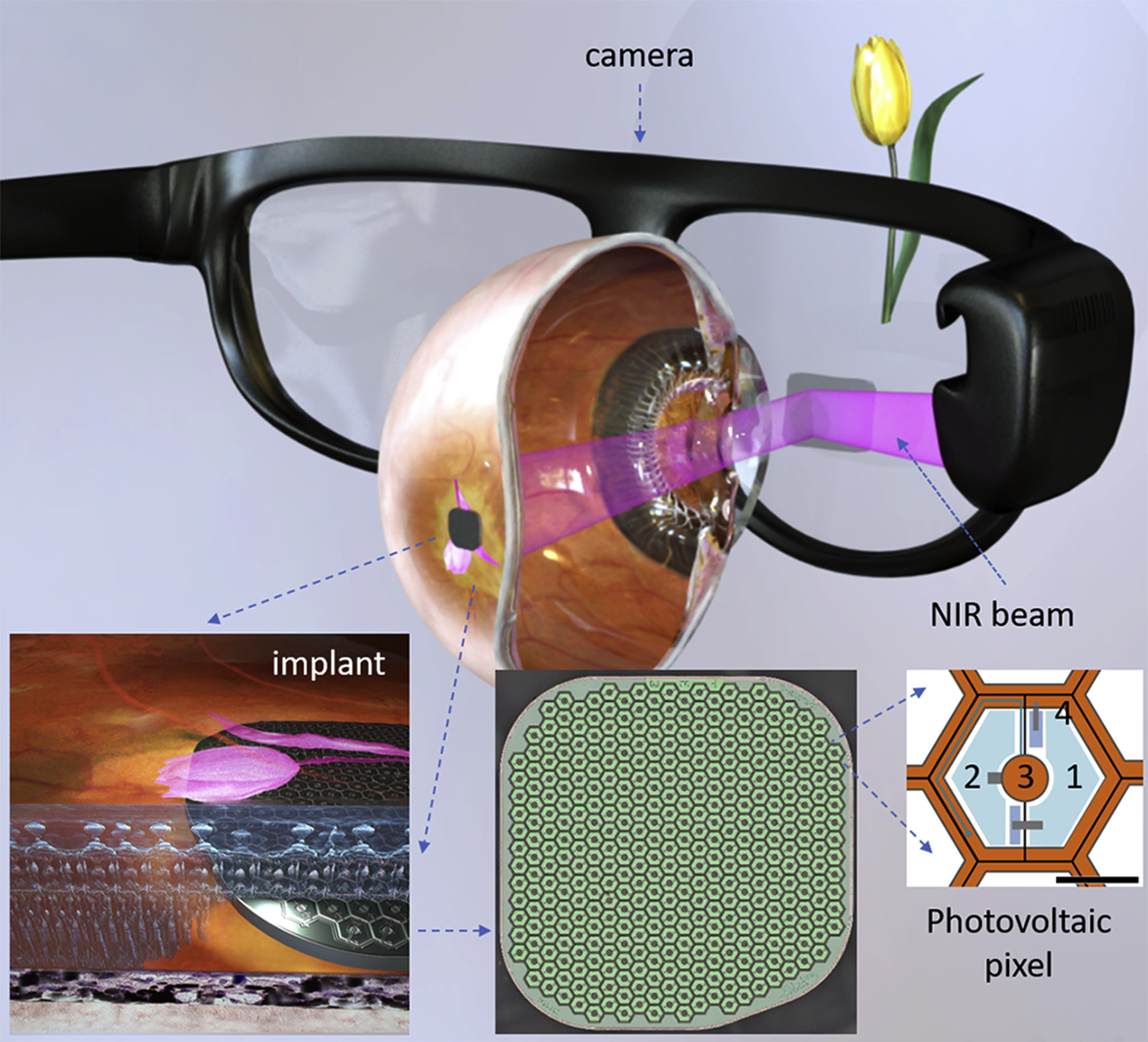

System diagram showing the photovoltaic retinal prosthesis, including the camera integrated into augmented reality like video glasses, with the processed image projected onto the retina using pulsed near-infrared (NIR) light. Subretinal wireless photovoltaic array converts pulsed light into pulsed electric current in each pixel to stimulate the adjacent inner retinal neurons. Each pixel includes 2 diodes (1 and 2), connected in series between the active (3) and return (4) electrodes. Scale bar ¼ 50 mm. Source: 10.1016/j.ophtha.2020.02.024
